Deeper polyurethane core for high-insulation roof specifications
EN
High-Insulation Roofing Product
65 mm × 950 mm Large-Format Panel
Enhanced insulation for demanding roofing applications
A deeper insulated aluminum roofing panel for buyers prioritizing stronger thermal and acoustic separation across demanding industrial, commercial, and residential roof systems.
4.9 / 52 product reviewsReview specifications- Overall depth
- 65 mm
- Effective width
- 950 mm
- Overall width
- 1,000 mm
- Fire rating
- B1
Applications
Where 65 mm × 950 mm Large-Format Panel fits
The 65 mm overall depth increases the available polyurethane insulation section while retaining efficient 950 mm effective coverage. Reinforcing ribs support dimensional stability across wide roof areas and help simplify installation planning.
- Industrial and warehouse roofs
- Large villas and sunrooms
- Custom homes and rural residences
- Long-span parking canopies
Choose by enclosure, temperature-control needs and total project cost, rather than thickness alone.
45 mm vs 65 mm Insulated Aluminum Panels: How to Choose

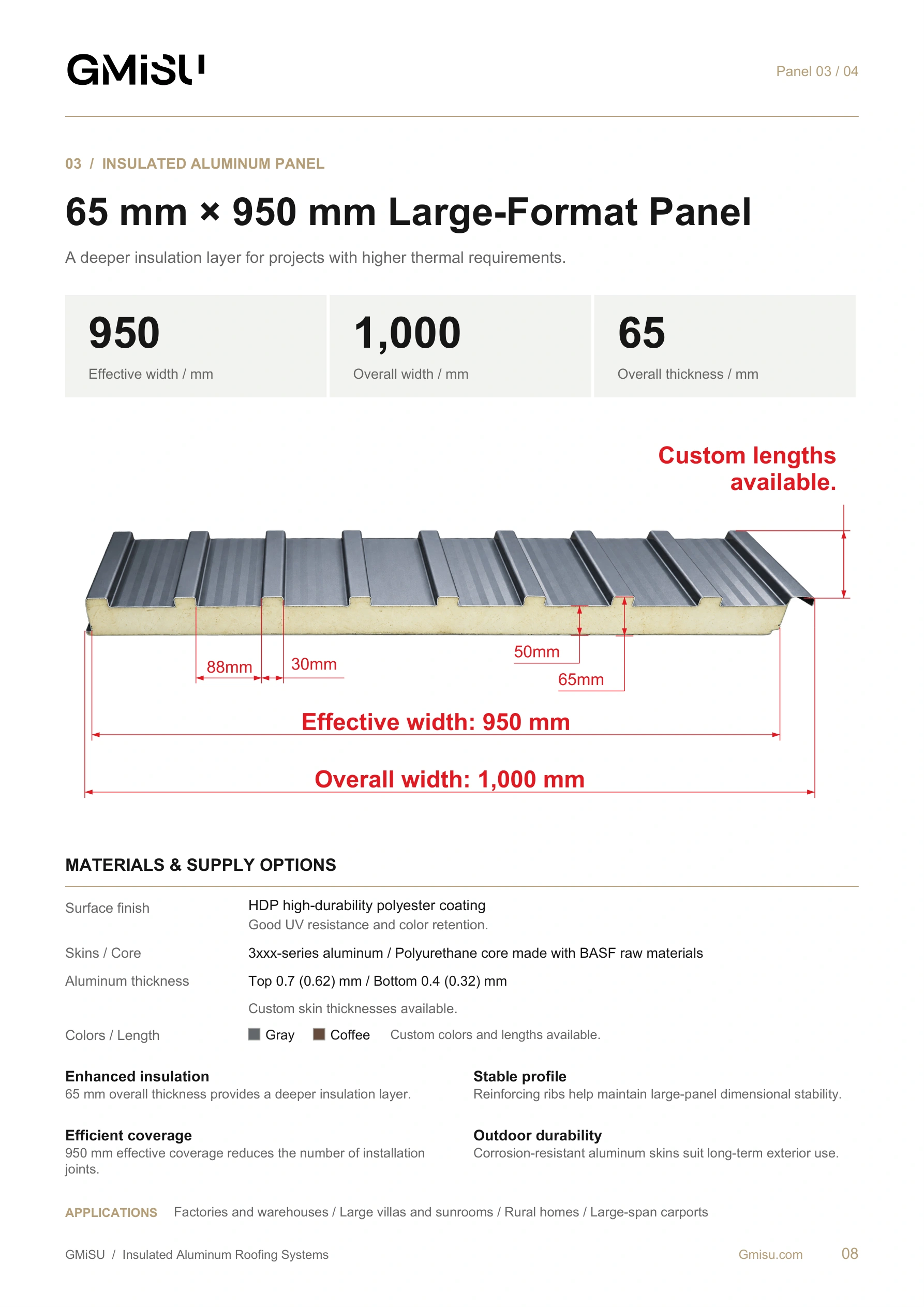

Product specifications
Dimensions, materials and finish
Specifications for 65 mm × 950 mm Large-Format Panel. Confirm the aluminum skin configuration, color, panel length and connection details before ordering.
- Overall depth
- 65 mm
- Effective width
- 950 mm
- Overall width
- 1,000 mm
- Aluminum skins
- 3xxx-series aluminum skins
- Insulation core
- Polyurethane insulation made with BASF raw materials
- Fire rating
- B1
- Surface finish
- HDP high-durability polyester coating
- Coating properties
- Good UV resistance and color retention
- Catalogue aluminum thickness
- Top 0.7 (0.62) mm / Bottom 0.4 (0.32) mm
- Custom aluminum skin thickness
- 0.3-1.2 mm
- Catalogue colors
- Gray, Coffee
- Custom colors
- RAL color codes or customer-supplied physical color samples
- Panel length
- Cut to project requirements, subject to handling, loading, and transport feasibility
Custom colors, lengths and aluminum skin thicknesses are available. Thickness values in parentheses are reproduced as listed in the catalogue; confirm the required configuration with your quotation.
Buyer benefits
Performance that matters in roof selection
Large-format coverage helps reduce installation joints
Rigid reinforced profile supports wide roof layouts
Weather-resistant aluminum surfaces resist corrosion
Customization and ordering
Commercial information for procurement planning
No generic price is published because specifications, quantity, packing, destination, and trade terms change the final quotation.
- MOQ and samples
- 500 linear meters per product; small-quantity samples are available.
- Lead time
- Within 3 working days for samples; typically 7-15 working days for bulk orders.
- Trade terms
- EXW is preferred; FOB is negotiable.
Quality documentation
Review quality assurance Reports and technical documents available on request
Complete test reports and additional technical documents are available upon request. The complete five-page B1 fire-performance report is also displayed inline on the homepage.
Related roofing products
Compare the remaining panel profiles
45 mm / 950 mm effective width
45 mm × 950 mm Large-Format Panel
Balanced insulation and rigidity for versatile roofing projects
View product
35 mm / 333 mm effective width
35 mm × 333 mm Modular Panel
Compact modular coverage for flexible installation
View product
33 mm / 1,000 mm effective width
33 mm Flat Insulated Aluminum Panel
A clean flat profile for contemporary architectural projects
View productRoofing accessories for project coordination
Coordinate ridges, flashings, trims, fixings and drainage with 65 mm × 950 mm Large-Format Panel. Dimensions and compatibility must be confirmed against the selected panel profile and project drawings. Not every accessory is required for every installation.
Ridges & connecting joints
4
Fixed Ridge Cap
Maximum length: 1.9 m
Adjustable-Angle Universal Ridge Cap
Maximum length: 6 m
Three-Way Roof Ridge Junction
Dimensions to suit the project
Straight Panel Connector
Dimensions to suit the project
End caps, wall flashings & joints
3
Wall Abutment Flashing
Maximum length: 1.9 m
Panel End Cap
Maximum size: 95 cm
Panel Connector
Dimensions to suit the project
Starter trims, edges & fixings
4
Universal Edge / Starter Trim
Maximum length: 2 m
Edge Trim
Dimensions to suit the project
Starter Trim for 950 mm Panels
For 950 mm large-format panels
Special Sealing Screw
Specification to suit the project
Gutters & corner fittings
5
Gutter
Maximum length: 6 m
90° Internal Gutter Corner
Angle: 90°
90° External Gutter Corner
Angle: 90°
Gutter Connector
Dimensions to suit the project
Gutter End Cap
Dimensions to suit the project
Downpipes & connecting fittings
5
Aluminum Downpipe
Maximum length: 6 m
Downpipe Elbow
Specification to suit the project
Downpipe Adapter
Specification to suit the project
Downpipe Starter Fitting
Specification to suit the project
Downpipe Bracket
Specification to suit the project
Customer project feedback
Reviews of the 65 mm × 950 mm Large-Format Panel
Individual customer experiences, shared with permission. Reported results relate to specific projects, not independent performance tests or universal product guarantees. Roof slope, drainage, structural spans, and local approvals require project-specific technical confirmation.
65 mm × 950 mm Large-Format Panel
We replaced conventional corrugated steel panels with GMiSU’s 65mm insulated aluminum panels on a 4,500 m² warehouse project in Victoria. The thermal performance exceeded our client’s expectations—indoor temperature dropped by nearly 7°C during peak summer. The lightweight panels cut our installation time by 25%. Levi and his team provided exceptional technical drawings and pre-shipment video inspection. Will definitely partner with GMiSU again!
65 mm × 950 mm Large-Format Panel
We used GMiSU 65mm insulated panels for an agricultural processing facility. The high moisture and ammonia environment would destroy galvanized steel roofs in a few years, but aluminum offers lifetime corrosion resistance. The thermal insulation maintains an optimal internal climate year-round with lower energy consumption. Outstanding value for commercial and agricultural builds.
Related Technical Guides
Questions about 65 mm × 950 mm Large-Format Panel
What is the minimum order quantity?
The MOQ is 500 linear meters per product. Small-quantity samples can be ordered before bulk production, while final bulk arrangements are confirmed for each project.
Which parts of the panel can be customized?
Colors, aluminum skin thickness from 0.3-1.2 mm, panel length, and project coordination details can be customized. Colors can follow RAL codes or a customer-supplied physical sample.
How quickly can GMiSU prepare samples and bulk orders?
Samples can normally be prepared within 3 working days. Typical bulk production lead time is 7-15 working days after order details are confirmed.
How can buyers inspect an order before shipment?
A live video-call inspection can be arranged before shipment. Additional inspection methods can be discussed and recorded in the order agreement.
Start your project
Tell us what you need to build.
Share your product type, dimensions, color, quantity, drawings, destination market, and target schedule with Levi Leung.
